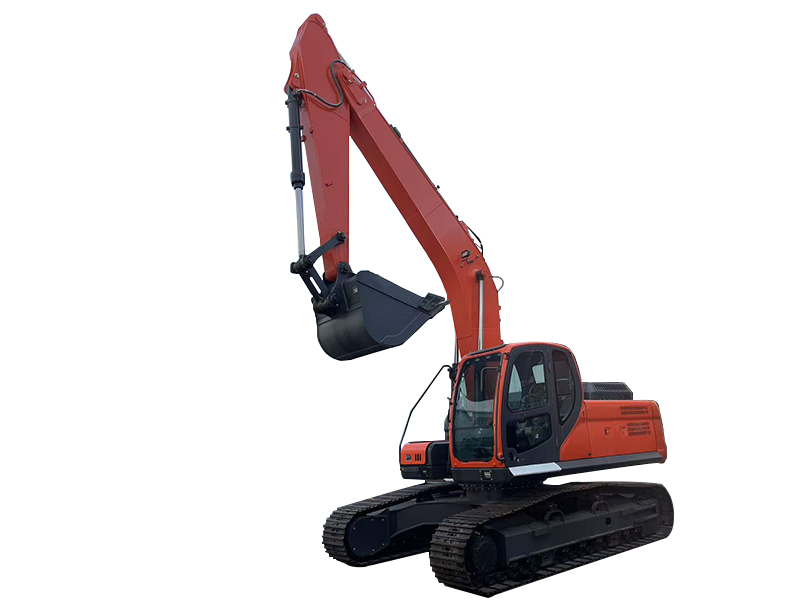

LG220 Excavating Machinery
Bucket Capacity:
1.0 m³
Whole weight:
22600 kg
Maximum digging depth:
9660mm
Bucket Capacity:
1.0 m³
Whole weight:
22600 kg
Maximum digging depth:
9660mm
| Main Technical Parameters | |
| Total transportation length (mm) | 9600 |
| Total transportation width (mm) | 3000 |
| Total transportation height (mm) | 3000 |
| Total length of crawler track (mm) | 4450 |
| Track shoe width (mm) | 600 |
| Counterweight ground clearance (mm) | 1105 |
| Working weight (kg) | 22600 |
| Bucket capacity (m³) | 1.0 |
| Engine | Cummins QSB5.9 Cummins QSB6. 7 |
| Engine emission standards | Euro 2 Euro 5 + EPA4 |
| Rated power (KW) | 133KW 145KW |
| Hydraulic pump | Kawasaki K3V112 Kawasaki K3V112 |
| Control valve | Rexroth |
| Fuel tank (L) | 350 |
| Hydraullc oil tank (L) | 240 |
| Maximum working radius (mm) | 9910 |
| Maximum digging depth (mm) | 6625 |
| Maximum digging height (mm) | 9660 |
| Maximum unloading height (mm) | 6850 |
One machine for multiple uses，to satisfy different occasions and applications.
The standard bucket is used for digging, ditching, loading and unloading,etc.
The grapple is used for loading and unloading the wood.
The ripper is used for agricultural digging and ripping, etc.
The rotary drill is used for drilling for planting trees or burying rods.
Listen to rhythm of fabrication. Let the production and art blend perfectly to make the harmonious aesthetics between people and machinery well-known all over the world.
