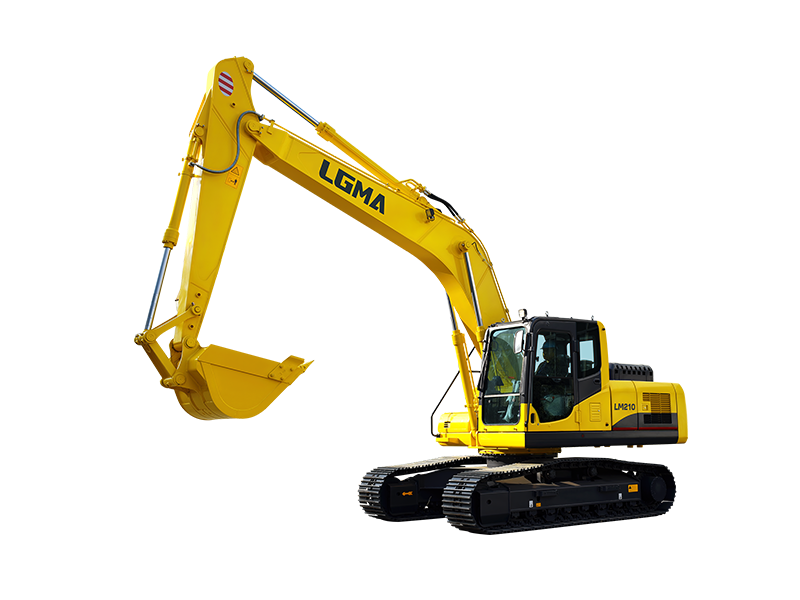

LM210.9 Excavating Machinery
Bucket Capacity:
0.9m³
Whole weight:
21500kg
Maximum digging depth:
6525mm
Bucket Capacity:
0.9m³
Whole weight:
21500kg
Maximum digging depth:
6525mm
| Main Technical Parameters | |
| Overall weight (T) | 21.5 |
| Bucket Capacity(m³) | 0.9 |
| Motor type | (Cummins) QSB7 |
| Rated Power(KW/rpm) | 135 / 2050 |
| Fuel tank volume(L) | 350 |
| Swing speed (r/min) | 10.7 |
| Overall length (mm) | 9535 |
| Overall width (mm) | 2780 |
| Minimum ground clearance (mm) | 470 |
| Maximum digging height (mm) | 9270 |
| Maximum unloading height (mm) | 6600 |
| Maximum digging depth (mm) | 6525 |
| Maximum digging distance (mm) | 9820 |
| Minimum turning radius (mm) | 3800 |
| Gradeability (°) | 35 |
| Traction (kN) | 220 |
| Track tooth thickness (mm) | 26 |
| Width of dozer blade (mm) | / |
| Arm length (mm) | 2900 |
One machine for multiple uses，to satisfy different occasions and applications.
The standard bucket is used for digging, ditching, loading and unloading,etc.
The grapple is used for loading and unloading the wood.
The ripper is used for agricultural digging and ripping, etc.
The rotary drill is used for drilling for planting trees or burying rods.
