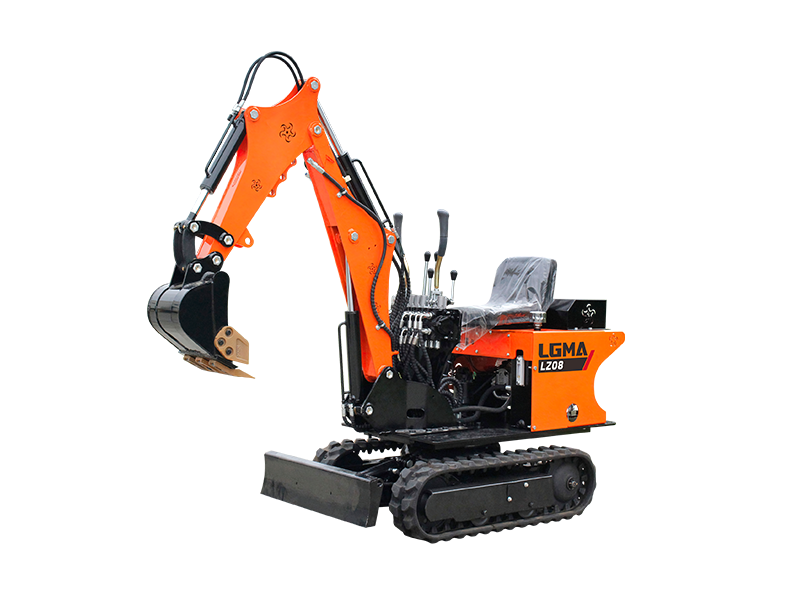

LZ08 Mini Excavator
Bucket Capacity:
0.02m³
Whole weight:
750kg
Maximum digging depth:
850mm
Bucket Capacity:
0.02m³
Whole weight:
750kg
Maximum digging depth:
850mm
| Main Technical Parameters | |
| Engine | Huapurui192 |
| EURO5&EPA4 Engine type | Briggs & Stratton engine、KOOP |
| Power | 12HP |
| Bucket capacity | 0.02m³ |
| Max.digging height | 2465mm |
| Max. Dumping height | 1600mm |
| Max.digging depth | 850mm |
| Max.digging radius | 2478mm |
| Gyration radius | 1360mm |
| Chassis width | 760mm |
| Machine weight | 750kg |
| Track grounding length | 805mm |
| Climbing ability | 20° |
| Track width | 150mm |
| Tank volume | 5L |
| Overall dimension | 2000*730*1880mm |
| Transport length | 2200mm |
| Excavator height | 1880mm |
| Hydraulic flow | 18L/min |
| Hydraulic tank volume | 12L |
| Work pressure | 16Mpa |
The standard bucket is used for digging, ditching, loading and unloading,etc.
The grapple is used for loading and unloading the wood.
The ripper is used for agricultural digging and ripping, etc.
The rotary drill is used for drilling for planting trees or burying rods.
