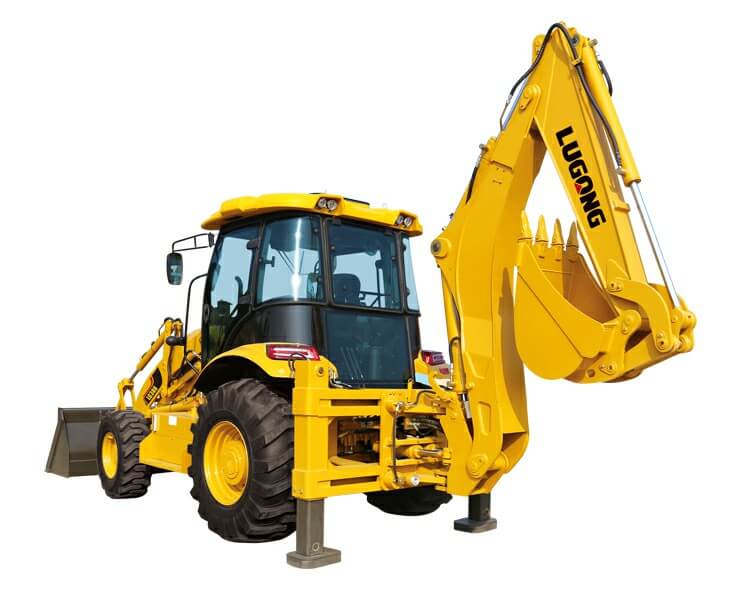

LG388
Backhoe Loader

LG388

Rated power:

75KW/102HP

Bucket capacity:

1m³

Operating weight:

8200kg

TECHNICAL PARAMETER

Performance
Operating weight 8200kg
transport dimension(mm) 6230×2365×3752
Wheel base 2250mm
Min.Ground clearance 300mm
Bucket capacity 1.0m³
Breakout force 38KN
Rated loading 2500kg
Dumping height 2650mm
Dumping reach 1025mm
Loading cutting depth 52mm
Backhoe capacity 0.3m³
Max.Digging depth 4085mm
Digging slewing angle 190°
Max.Pulling force 39KN
Steering system
Diverter model BZZ5-250
Steering angle ±36°
Min.Turning radius 6581mm
Engine
Model Yuchai YC4A105Z-T20
Type Turbocharging four-stroke
Cylinder-Inner diameter*stroke 4-108×132
Rated power 75KW/102HP
Rated speed 2400r/min
Min.Fuel consumption 235g/kw.h
Max.Torque 400N.m
Displacement 4.3L
transmission/Gearbox
Type Countershaft power shift type
Gears 2 Forward and 2 reverse gears
Oil pressure of clutch 1373Kpa-1569Kpa
Hydraulic system
Bucket digging force 46.5KN
Tyre
Model 14-17.5/19.5L-24
Air pressure of front tyre 0.22Mpa
Air pressure of rear tyre 0.22Mpa

Leave a Request

Our manager will contact you within 30 minutes of working hours





    SPECIAL FEATURES

    Manganese steel plate for vehicle structure

    The whole vehicle structure adopts manganese steel plate which brings high strength and good structural stability.

    Stable hydraulic system

    The improved and stable hydraulic system which ensures good working performance.
