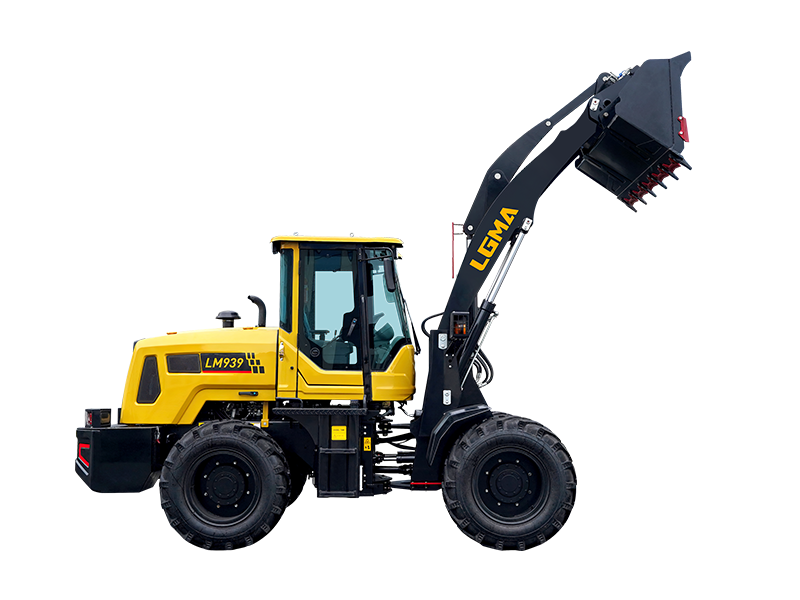

LM939

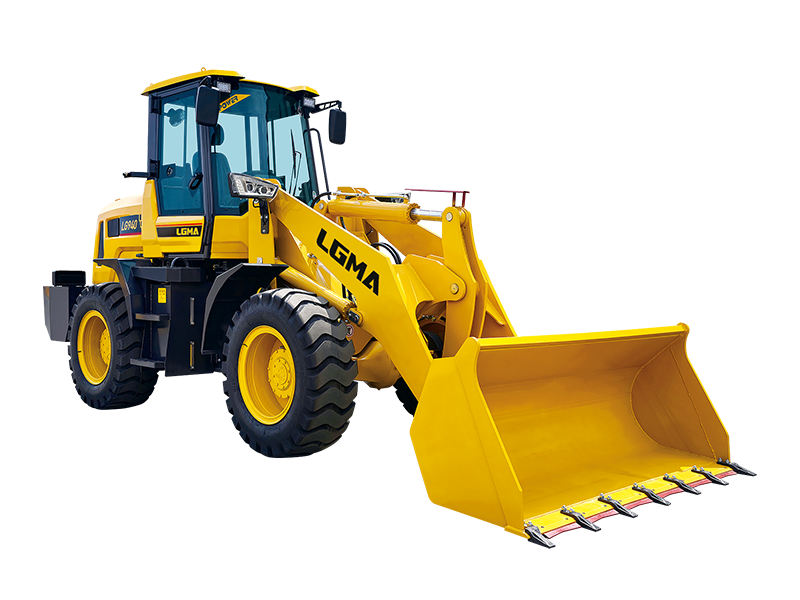

LM939 Wheel Loader

Bucket capacity:

1.2m³

Rated Load:

2200kg

Rated Power

92KW

Products Description

1.Axle: Patented axle, stronger power, low fuel consumption.

2.Engine: Lugong loader with Weichai, Yuchai, Cummins, DEUTZ and other well-known brands at home and abroad engines, stable and reliable quality.

3.Cab: The body adopts stretch stamping process, overall beautiful, large internal space, solid structure, certified by ROPS&FOPS.

4.Hinged: Three-layer articulated system with good balance, flexible steering and strong fatigue resistance.

5.Multi-level oil cooling radiator: each system dissipates heat independently, using large aperture mesh to increase the

heat dissipation area and enhance the heat dissipation effect.

6.Brake: Dual brake booster pumps control the front and rear axle brakes respectively, improving brake safety.

TECHNICAL PARAMETER

Main Technical Parameters
Overall length (mm) 6450
Overall height (mm) 2900
Tire outer width (mm) 2080
Outer width of bucket (mm) 2250
Unloading height (mm) 3500
Unloading distance (mm) 830
Maximum height on the bucket (mm) 4950
Bucket lower pin shaft height (mm) 4200
Front turning radius (mm) 5200
Rear turning radius (mm) 4100
Minimum ground clearance (mm) 420
Wheel base (mm) 2580
Track width (mm) 1690
Rated load capacity (kg) 2200
Whole machine weight (kg) 5850
Standard bucket size (mm) 220*980*530
Standard bucket capacity (m³) 1.2
Engine Yunnei4108 Turbor
Ratedpower (kW) 92
Emission Stage-2
Drive axle model LG2.8T Large wheel side axle
Tire model 16/70-24

Leave a Request

Our manager will contact you within 30 minutes of working hours






    PRODUCT FEATURES

    DIFFERENTIATED PRODUCTS

    According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.

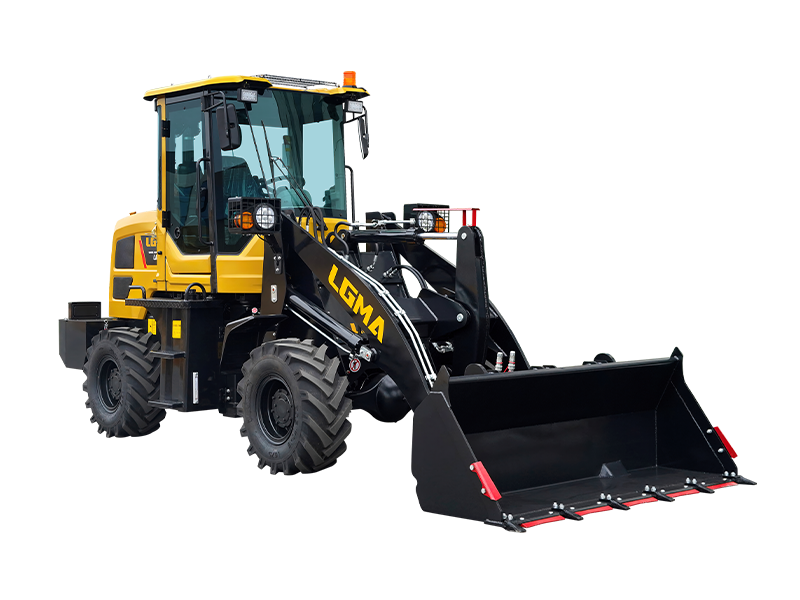

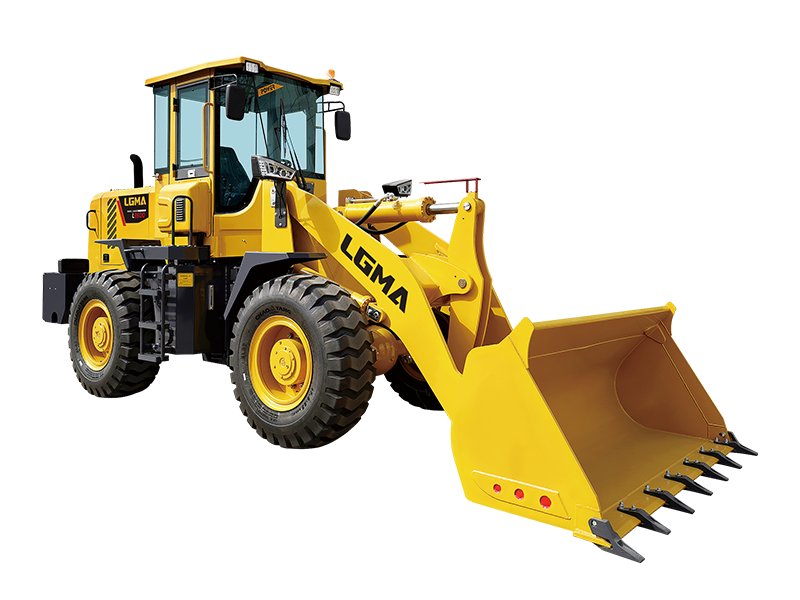

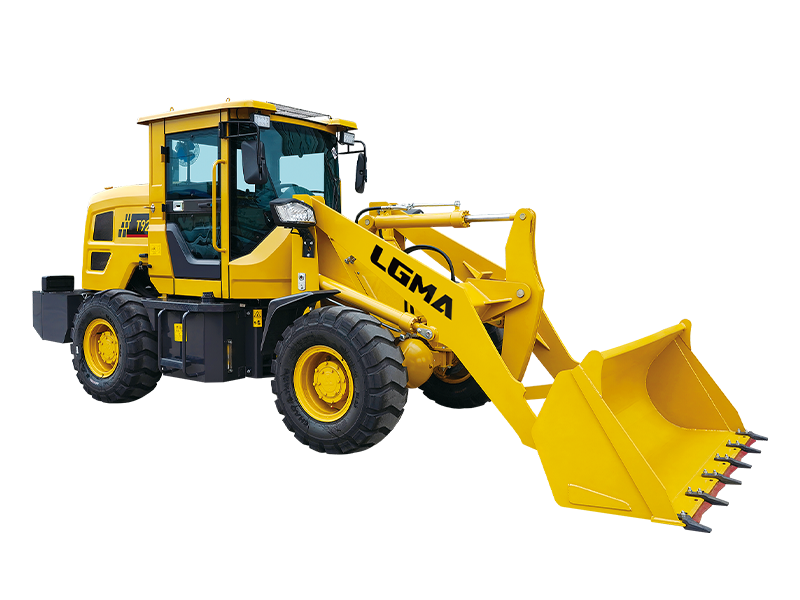

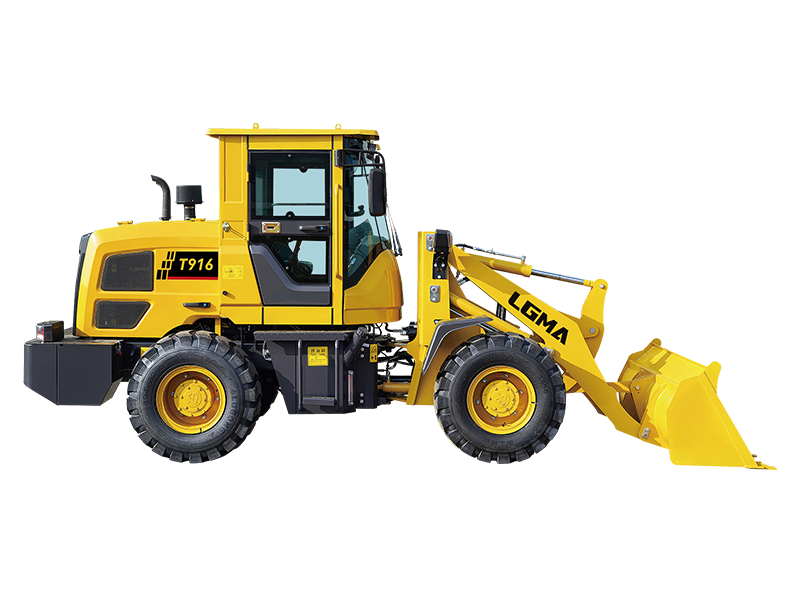

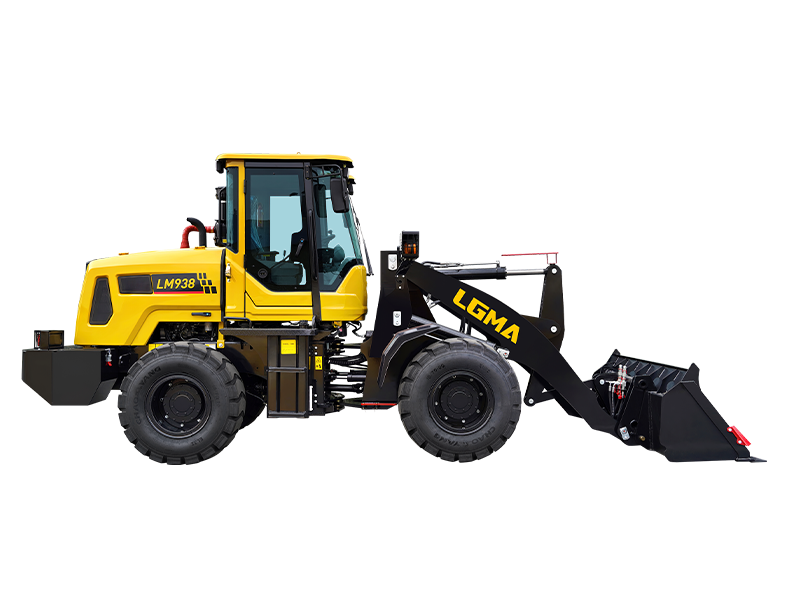

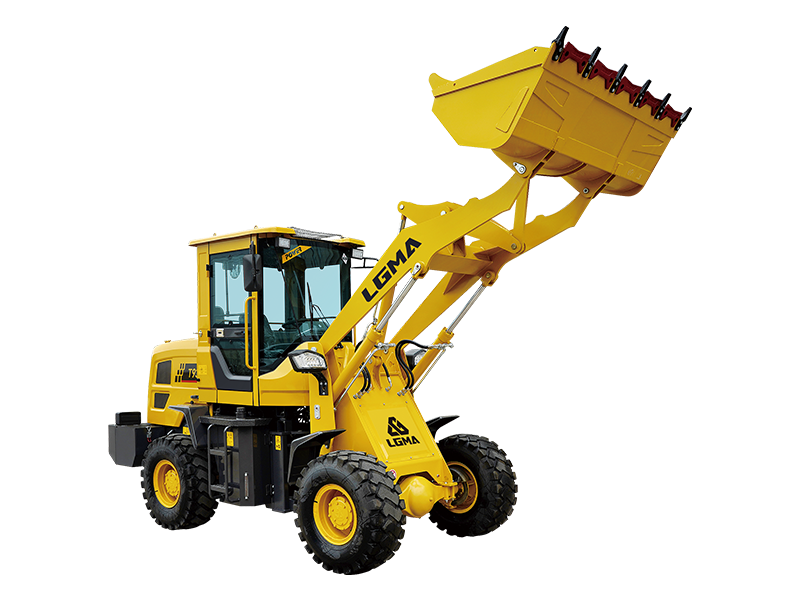

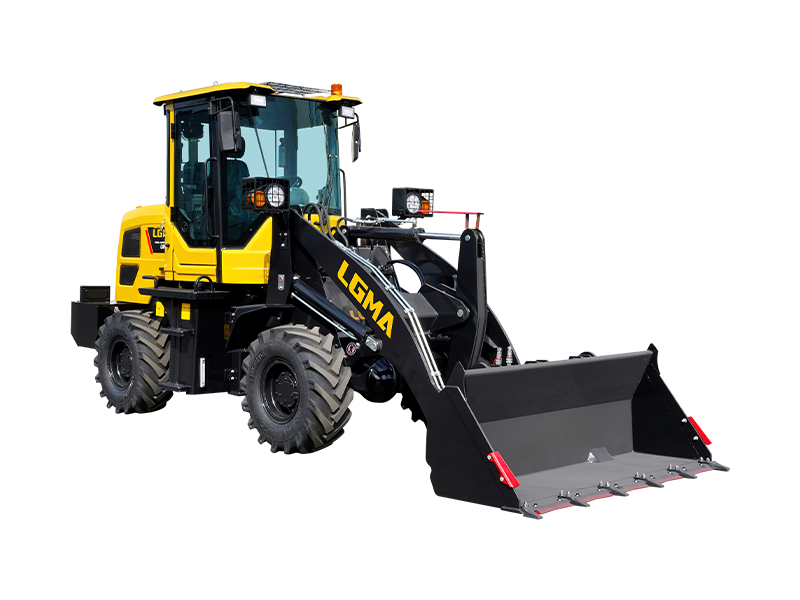

    Related Models
